GT100 Automotive Tools OBD II Break Out Box ECU Connector with OBD Main Line & Multi-Function Jumper for Check Engine, Supports LED Indicator and Lookup

🔥 Cashback up to 70% GT100 Automotive Tools OBD II Break Out Box ECU Connector with OBD Main Line & Multi-Function Jumper for Check Engine, Supports LED Indicator and Lookup Reviews

So you can check out the other reviews at Amazon.com

only with $ 109.99

Brand	GODIAG
Power Source	Battery Powered
Item Dimensions LxWxH	7.87 x 5.91 x 1.57 inches

---

• Good Performance-----This OBDII protocol detector has wide range of applications in diagnostics,decoder and coding/ECU maintenance.
• Function----In the process of using the OBD2 protocol detector car test box, errors can be found and diagnosed OBD connector link.Check power and ground circuits, check active protocol lines for detailed signal analysis Connect, detect and more.Then connect to the diagnostic tool, when the tool is communicating with the car, the LED indicator of corresponding protocol will light up or flash.
• Connect a single ECU to communicate with diagnostic equipment, or In the process of using decoder, error can be found and diagnosed OBD connector link. Engineers or technicians can easily complete their work in the office to prevent data loss of other modules when testing modules on the car.
• GT100 OBD2 cable can be extended to 1.2 meters. You can first connect it to the device to turn on the power of the device, or use it to determine whether the power of the obd2 interface of the vehicle is normal. After modifying the vehicle OBD2 interface, avoid burning the car reader and car diagnostic tool
• Hope to provide you with the most satisfactory products and timely after-sales service. If you encounter any product problems or other feedback, please contact us in time, we will reply you within 24 hours, and we will provide you with a replacement/return/refund policy. Let you enjoy a pleasant shopping experience

› See more product details

---

Product Description

About Our Story

GODIAG is a professional supplier of automotive diagnostic products, services and solutions in the aftermarket.

We combine industry knowledge, manufacturing expertise, and technological innovation to offer a broad portfolio including OBDII code readers, scanners, electrical brake tools, Data Logger devices and other emerging tools for the benefits of our customers. At GODIAG, 90% of our team members have technical background and have been engaged in technology research and development in related fields for many years.

We are committed to the production of the world's smallest OBD products, with most complete functions, the cost control to the extreme, the function to the most perfect. User’s experience is our priority.

• Technicians are problem solvers who aren’t afraid of sweat on their brow and grease on their hands.

Help you save expensive car reppair costs

GODIAG GT100 OBD II Break Out Box ECU Connector

Read more

GT100 Automotive Tools OBD II Break Out Box ECU Connector with OBD Main Line & Multi-Function Jumper for Check Engine, Supports LED Indicator and Lookup

Unmatched Coverage-OBD main line & Multi-function jumper

• No. 26 color universal jumper and banana plug. The length is 50cm (19.68 in). Customers can choose functions according to their own needs and make their own conversion jumpers to connect more ECUs to GT100. Realize data docking of automobile ECU module to GT100.
• Color DB25 jumper. The length is 45cm (17.71in). There are 37 universal ECU connection jumpers with labels. Customers can define required functions according to the jumpers, connect ECU to GT100, and realize ECU data docking to GT100 through color jumpers.
• DB15-OBD2 main line. The length is 60cm (23.62 in), the OBD2 male connector is connected to the GT100 to the vehicle to upload data from the vehicle, and the OBD2 female connector is connected to the diagnostic programming device.

Prepare battery A to supply power by connecting to No. 16 / 4 / 5 holes of Godiag GT100 & to the OBD2 diagnostic interface of the car.

• Notice ：

1. Turn on the power switch of Godiag GT100.
2. 2. Don't turn on the ignition switch, don't start the car
3. Then replace the brand-new battery B with the used battery in the car, which will ensure that the car has fully power to prevent data loss and audio lock-up or the malfunction due to lack of power to the ECU control module.

GODIAG GT100 Breakout Box -OBD2 Protocol Detector Car Test Box for OBDII Protocol Communication Detection/ECU Tool Maintenance/Diagnosis/Coding Main Feature

• GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance / diagnosis/coding.
• It can convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion. Able to connect the single modules or multiple modules of the vehicle. It can be connected with any diagnostic tool to tell whether the car communication is good or not. It can also supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, the key remote control fails and the fault light turns on.

GODIAG GT100 function and operation guide

• - By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100's LED will indicate whether the OBDII diagnostic interface has a good communication with the car.

Please Note:

• - Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start/data loss/module locked.

OBD1 interface into obd2

Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.

After plugging the banana plug to the colored jumper cable, connect GT100 to the OBD1 diagnostic port of old car / special car, and meanwhile with the OBD 2-in-1 extension cable connected to the diagnostic & programming tool, the vehicle will be diagnosed or programmed perfectly. Because GT100 will convert the OBD1 port or the special vehicle diagnostic port to the standard OBD2 diagnostic port

Additional Extension Cables

The space of the diagnostic interface location is too narrow to connect to the diagnostic tool, or the user find that the diagnostic cable is not long enough during maintenance. It can be extended by 1.2 meters.

The OBD2 cable of GT100 OBD II Break Out Box ECU Connector is as long as 1.2 meters, which will solve the problem that the diagnostic tool cable is not long enough or the vehicle diagnostic port is too narrow to connect. Please connect GT100 first, turn on the power switch and you will see the voltage on the screen which can tell whether the power supply of the vehicle is normal. [Which keep away the risk of burning out the diagnostic & programming tool due to the modified vehicle OBD2 port]

Connect Multiple ECU Control Modules

Can connect multiple ECU control modules at the same time, which is convenient for the professional engineers to detect and maintain.

USER-FRIENDLY DESIGN

[USER-FRIENDLY DESIGN] - Equipped with an intuitive interface,color backlit large screen, Breakout box ecu connector for holding easily

OBD1 interface into obd2

Additional Extension Cables

Connect Multiple ECU Control Modules

USER-FRIENDLY DESIGN

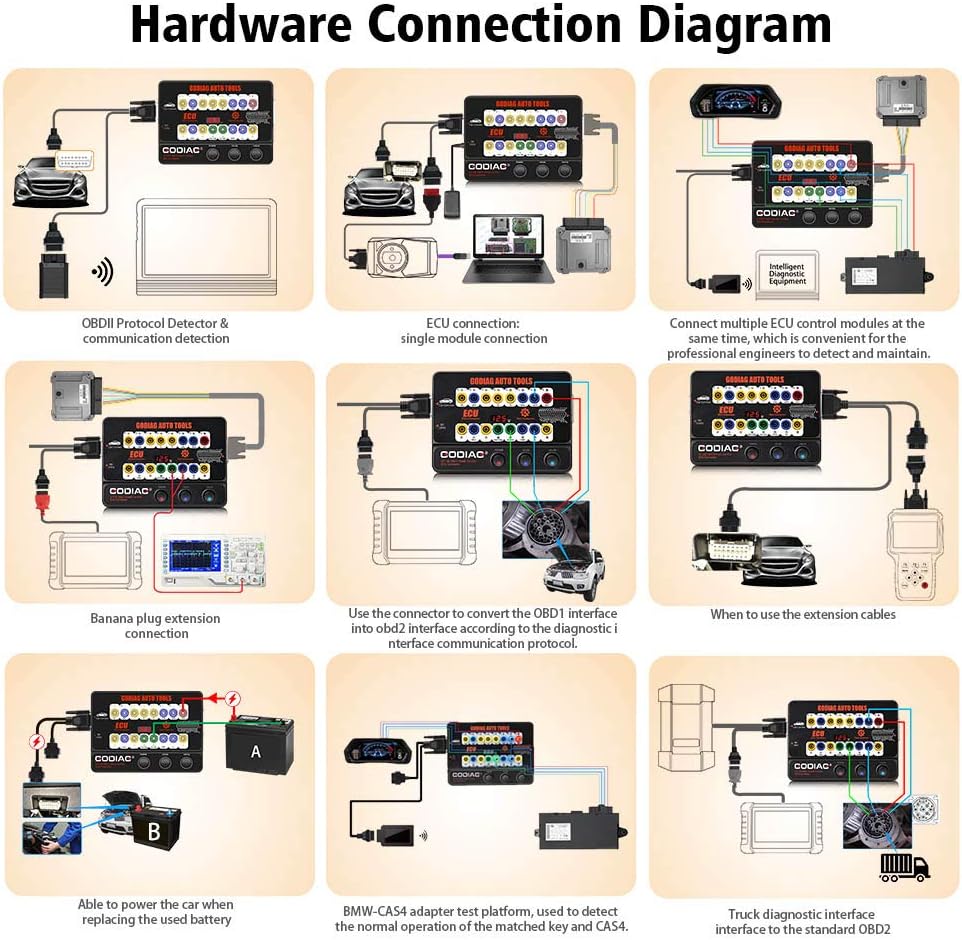

OBDII Protocol Detector & communication detection

When the device displays the voltage, turn on the power switch of GODIAG GT100 OBD II Break Out Box ECU Connector.

Then connect to the diagnostic tool, when the tool is communicating with the car, the LED indicator of corresponding protocol will light up or flash.

• ( If the CAN protocol is detected, it will have the maximum brightness. When the communication is successful, the corresponding CAN-H and CAN-L will dim or twinkling weakly)

ECU connection: single module connection

1. Connect the ECU with the color jumpers. (If the ECU is CAN protocol, please check whether you will need to connect a 120 ohm resistor.)
2. The Godiag GT100 OBD II Break Out Box ECU Connector can be powered by connecting to the OBDII diagnostic interface of car, or by an AC power adapter.
3. To diagnose and program for a single ECU by connecting the diagnostic tool or ECU programmer.

Multi-module connection

GT100 diagnostic tool can be connected to multiple ECU control modules at the same time, and can be connected to the car dashboard module, engine module, gearbox module, central control module and other car diagnostic equipment tools at the same time. Professional engineers can easily perform multiple connection inspections and maintenance.

A simple, affordable and easy-to-use ecu connector tool, this little device may save you money and trips to the mechanic by allowing you to decide if it’s something you can fix or more help is needed.

Banana plug extension connection

Extend the car's OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.

Display the status during communication:

After connecting GT100 to the OBD2 port of the vehicle, turn on the "Power" switch, then you will see the current vehicle battery voltage displayed on the device. Then to connect the diagnostic & programming tool which will communicate with the vehicle and the corresponding protocol indicator light will turn on or flash on the GT100.

It is very helpful for the user to determine what protocol the vehicle module.
